风机水帘

【项目背景与挑战】

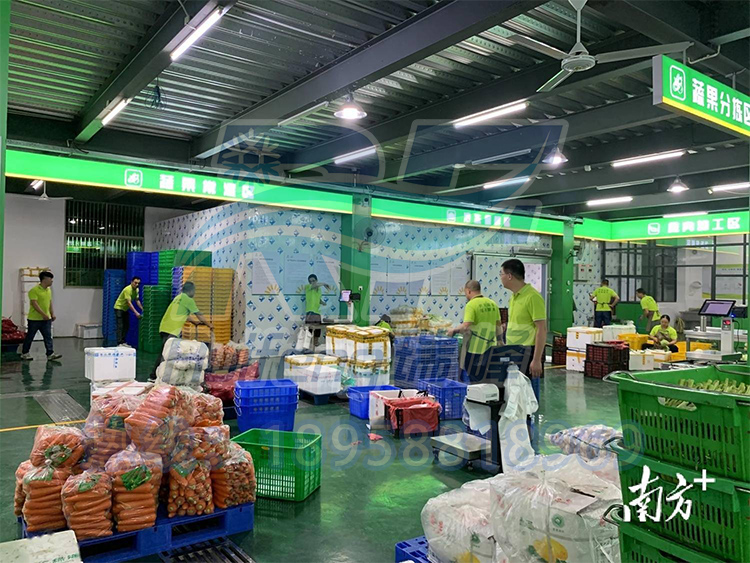

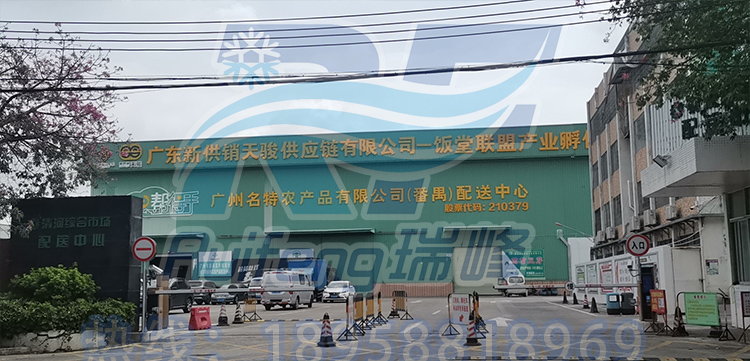

广州名特农产品番禺配送中心,坐落于广州市番禺区。广州地处亚热带沿海,属于典型的海洋性亚热带季风气候,其特点是:全年气温较高,湿度较大,夏季漫长且炎热潮湿,平均气温在28℃-35℃之间,时常伴有雷暴雨;冬季则相对短暂温和。 这种高温高湿的环境,对农产品的新鲜度、储存周期以及工作人员的作业舒适度都构成了严峻挑战。

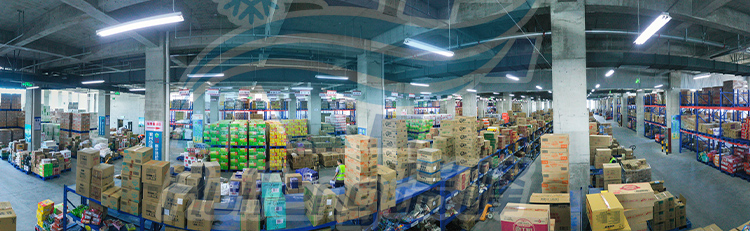

作为区域性的农产品集散地,该配送中心承担着农产品分拣、包装、暂存及转运等核心功能。其高效运转,直接关系到整个供应链的稳定与农产品的品质安全。然而,由于其主体为钢筋混凝土结构的大平层建筑,内部空间巨大,空气流通不畅,在炎热天气下,内部温度极易攀升,不仅影响作业人员的效率和健康,也加速了部分农产品的腐损。

【瑞峰方案与技术创新】

面对这一挑战,瑞峰环保制冷的方案设计人员深入现场,综合评估了地理气候特征、建筑结构、使用功能及客户预算等多重因素,最终为其量身定制了以“蒸发式冷风机(环保空调)为核心”的通风降温解决方案。

我们分析认为:该配送中心因其特殊功能,日常作业中车辆与人员进出频繁,为保障物流效率,出入口通常无法完全关闭,形成了相对开放式的作业环境。 在此类空间,若安装传统成本高昂的中央空调,不仅一次性投入巨大,且因冷气易流失,将导致能耗惊人。相比之下,蒸发式冷风机不仅初始投资低,运行成本也极为经济。

更重要的是,农产品的周转环境主要关注的是保持通风、防止霉变和减少乙烯等催熟气体的积聚,对精准的温度控制并无严格要求。 这恰恰与蒸发式冷风机“通过水蒸发吸热,实现3℃-8℃的自然降温,同时持续引入大量新鲜空气,并强力排出室内污浊、高温气体”的工作原理高度契合,能有效改善室内空气质量,营造一个既降温又通风、清新舒适的工作环境。

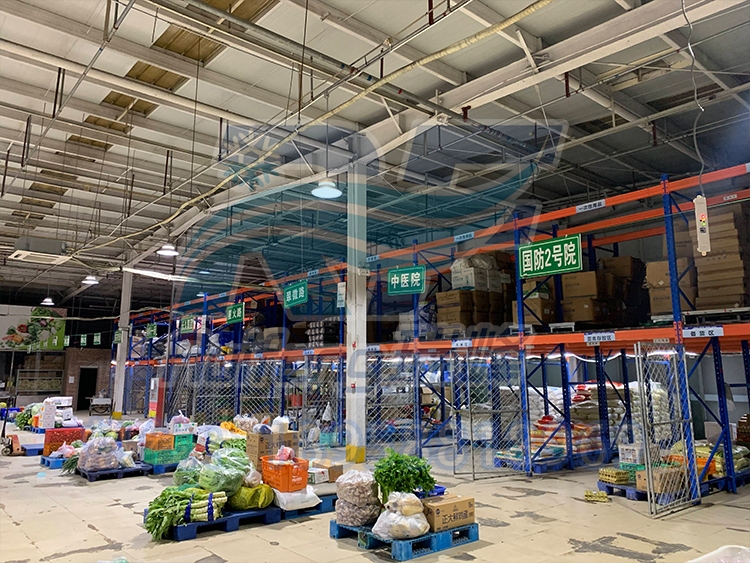

在安装方式上,为最大化利用地面空间,保障叉车、货物及人员的通行顺畅,我们创新性地采用了吊挂式安装。这一方案基于热空气上升、冷空气下沉的空气对流物理原理,将冷风机吊挂于高处,可将处理后的凉爽、洁净空气自上而下均匀输送,在室内形成舒适的“空气湖”效果,有效覆盖大面积作业区域。设备启用后,室内闷热感显著消除,空气流通速度加快,异味和粉尘得以有效排出,为工作人员创造了健康、舒适的工作环境,间接提升了作业效率与安全性。

【项目价值与瑞峰实力】

此次广州名特农产品番禺配送中心项目的成功实施,不仅是瑞峰在农产品流通领域的一个典型范例,更充分展现了我们在处理大空间、高挑空、半开放式复杂环境下的专业技术实力。

瑞峰环保制冷具备从现场勘查、方案设计、设备选型到专业施工的全链条服务能力。我们擅长将物理原理与实际工况相结合,无论是物流仓储、生产车间,还是体育场馆、展会大厅,我们都能为您提供最具性价比、最科学高效的通风降温解决方案。

选择瑞峰,就是选择专业与可靠。让我们携手,为您的事业创造“清风徐来”的舒适环境!






Project Background and Challenges

Guangzhou Famous Special Agricultural Products Panyu Distribution Center is located in Panyu District, Guangzhou City. Guangzhou is located in the subtropical coastal area and belongs to the typical marine subtropical monsoon climate. Its characteristics are: high temperature and humidity throughout the year, long and hot and humid summer, average temperature between 28 ℃ -35 ℃, often accompanied by thunder and rainstorm; Winter is relatively short and mild. This high temperature and high humidity environment poses serious challenges to the freshness of agricultural products, storage cycles, and the comfort of workers.

As a regional agricultural product distribution center, this distribution center undertakes core functions such as sorting, packaging, temporary storage, and transportation of agricultural products. Its efficient operation is directly related to the stability of the entire supply chain and the quality and safety of agricultural products. However, due to the large flat structure of reinforced concrete as its main body, the internal space is huge and the air circulation is not smooth. In hot weather, the internal temperature is prone to rise, which not only affects the efficiency and health of workers, but also accelerates the decay of some agricultural products.

Ruifeng Solution and Technological Innovation

Faced with this challenge, the design team of Ruifeng Environmental Protection Refrigeration went deep into the site, comprehensively evaluated multiple factors such as geographical climate characteristics, building structure, usage functions, and customer budgets, and finally tailored a ventilation and cooling solution with "evaporative air cooler (environmental air conditioning) as the core".

We analyze that due to its special functions, the distribution center has frequent entry and exit of vehicles and personnel in daily operations. To ensure logistics efficiency, the entrances and exits are usually unable to be completely closed, forming a relatively open working environment. In such spaces, installing traditional expensive central air conditioning not only requires a huge one-time investment, but also results in astonishing energy consumption due to the easy loss of air conditioning. In contrast, evaporative air coolers not only have low initial investment, but also have extremely economical operating costs.

More importantly, the turnover environment of agricultural products mainly focuses on maintaining ventilation, preventing mold growth, and reducing the accumulation of ripening gases such as ethylene, without strict requirements for precise temperature control. This is precisely in line with the working principle of evaporative air coolers, which use water evaporation to absorb heat and achieve natural cooling of 3 ℃ -8 ℃, while continuously introducing a large amount of fresh air and strongly discharging indoor polluted and high-temperature gases. It can effectively improve indoor air quality and create a cool, ventilated, fresh and comfortable working environment.

In terms of installation method, in order to maximize the use of ground space and ensure smooth passage of forklifts, goods, and personnel, we innovatively adopt a hanging installation. This scheme is based on the physical principle of air convection, where hot air rises and cold air sinks. By hanging the air cooler at a high place, the processed cool and clean air can be evenly transported from top to bottom, creating a comfortable "air lake" effect indoors and effectively covering a large area of the work area. After the equipment is put into use, the indoor stuffiness is significantly eliminated, the air circulation speed is accelerated, and odors and dust are effectively discharged, creating a healthy and comfortable working environment for workers and indirectly improving work efficiency and safety.

Project Value and Ruifeng Strength

The successful implementation of the Guangzhou Famous Agricultural Products Panyu Distribution Center project is not only a typical example of Ruifeng in the field of agricultural product circulation, but also fully demonstrates our professional technical strength in handling large spaces, high ceilings, and semi open complex environments.

Ruifeng Environmental Protection Refrigeration has the full chain service capability from on-site investigation, scheme design, equipment selection to professional construction. We specialize in combining physical principles with practical working conditions. Whether it's logistics warehousing, production workshops, sports venues, or exhibition halls, we can provide you with the most cost-effective, scientific, and efficient ventilation and cooling solutions.

Choosing Ruifeng means choosing professionalism and reliability. Let's join hands and create a comfortable environment for your career with a gentle breeze!
